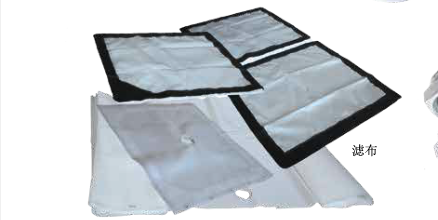

Our customized filter press cloths are precision-engineered filtration media tailored to your specific slurry properties, process conditions and filter press requirements. Unlike generic one-size-fits-all filter cloths, we analyze your material characteristics, operating pressure, temperature and chemical environment to select the optimal material, weave pattern and finishing treatment, ensuring maximum filtration efficiency, superior cake release and extended service life. Each cloth is custom-cut and fabricated to perfectly fit your filter plates, eliminating gaps and preventing bypass leakage.
Core Advantages
- 100% Application-Specific Customization: Expertly matched to your unique slurry properties, delivering 20-30% better filtration performance than standard cloths
- Superior Filtration Precision: Consistent particle retention from 0.5μm to 200μm, producing crystal-clear filtrate and minimizing valuable product loss
- Exceptional Cake Release: Advanced surface treatments (calendering, singeing, PTFE coating) reduce cake adhesion, cutting discharge time by 30-40% and preventing cloth blinding
- Extended Service Life: High-quality industrial-grade fibers resist abrasion, chemical corrosion and mechanical fatigue, lasting 2-3 times longer than generic alternatives
- Leak-Free Performance: Precision cutting and reinforced edge sealing eliminate bypass leakage, ensuring maximum filtration efficiency and product recovery
- Expert Technical Support: Our filtration engineers provide professional material selection and process optimization recommendations
Customization Options
- Fiber Materials: Polypropylene (PP), polyester (PET), nylon (PA), PTFE, aramid, glass fiber
- Weave Patterns: Plain weave, twill weave, satin weave, double-layer weave, needle felt
- Filtration Precision: 0.5μm – 200μm
- Compatible Plate Sizes: 450×450mm to 2500×2500mm
- Surface Treatments: Heat setting, calendering, singeing, PTFE coating, anti-static treatment, acid/alkali resistant treatment
- Fabrication Options: Reinforced edges, pre-punched holes, lifting straps, gasket integration, corner reinforcements
Technical Specifications
- Maximum Working Pressure: 25 bar
- Operating Temperature: -20°C to 260°C (material-dependent)
- pH Resistance: 1-14 (material-dependent)
- Thickness: 0.3mm – 5mm
- Weight: 200g/m² – 2000g/m²
- Air Permeability: 10-500 L/dm²·min
- Compatibility: All major chamber, diaphragm and plate-and-frame filter press brands
Application Fields
Perfect for all industrial filtration applications:
- Municipal and industrial wastewater treatment
- Mining and mineral processing (tailings, concentrates, coal)
- Chemical and petrochemical processing
- Food and beverage manufacturing (sugar, starch, edible oil, wine)
- Pharmaceutical and biotechnology
- Construction and building materials (gypsum, cement, ceramics)
- Metallurgical industry
- Environmental remediation
