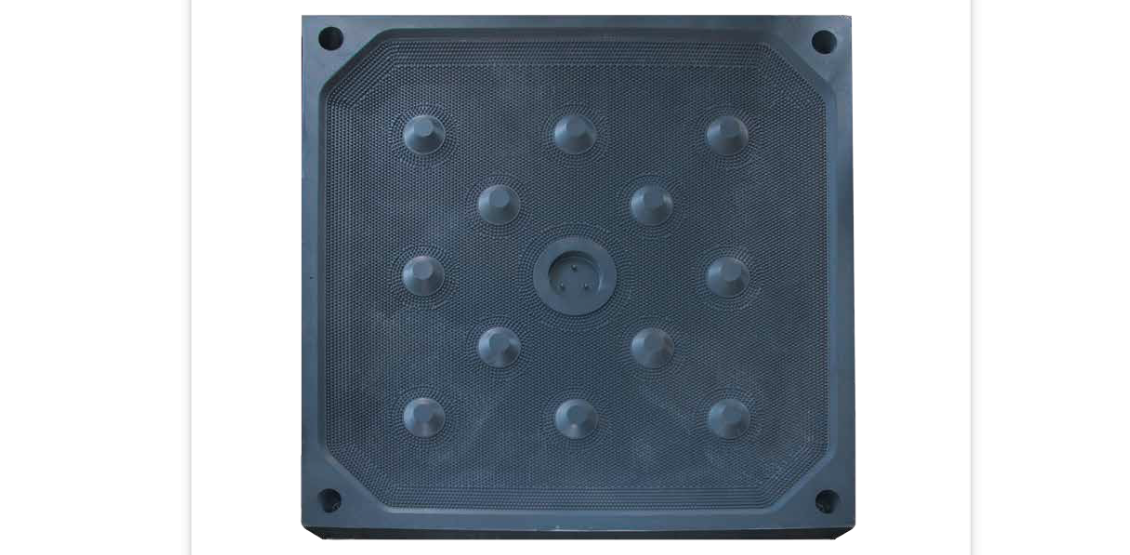

This specially engineered filter plate combines high-temperature resistance, non-stick surface treatment and increased chamber volume to solve common problems in demanding filtration applications. Unlike standard PP filter plates that deform at high temperatures or cause difficult cake discharge, our advanced design maintains structural integrity up to 120°C, ensures complete cake release and significantly boosts single-batch processing capacity. It is a direct replacement for standard filter plates in most chamber and diaphragm filter presses.
Key Advantages
- High Temperature Performance: Special modified polypropylene material withstands continuous operating temperatures up to 120°C, preventing thermal deformation and cracking
- Non-Stick Surface: Food-grade non-stick coating eliminates cake adhesion, reduces manual scraping by 90% and shortens discharge time
- 30% Larger Chamber Volume: Optimized deep-chamber design increases single-batch processing capacity without changing filter press dimensions
- Superior Durability: Reinforced rib structure provides excellent pressure resistance up to 16 bar, extending service life by 2-3 times
- Easy Installation: Compatible with all major filter press brands and models, no modification required
Technical Specifications
- Material: High-temperature modified polypropylene (PP)
- Operating Temperature: -20°C to 120°C
- Maximum Working Pressure: 16 bar
- Chamber Depth: 30-50mm (30% deeper than standard plates)
- Sizes Available: 450×450mm to 2000×2000mm
- Surface Treatment: Food-safe non-stick coating
- Compatibility: All chamber and diaphragm filter presses
Application Fields
Perfect for processing high-temperature and sticky materials:
- Chemical industry (resins, adhesives, dyes)
- Food processing (sugar, starch, edible oil, fruit juice)
- Pharmaceutical manufacturing (API, herbal extracts)
- Metallurgical industry (high-temperature leachate)
- Industrial wastewater treatment (high-temperature sludge)
