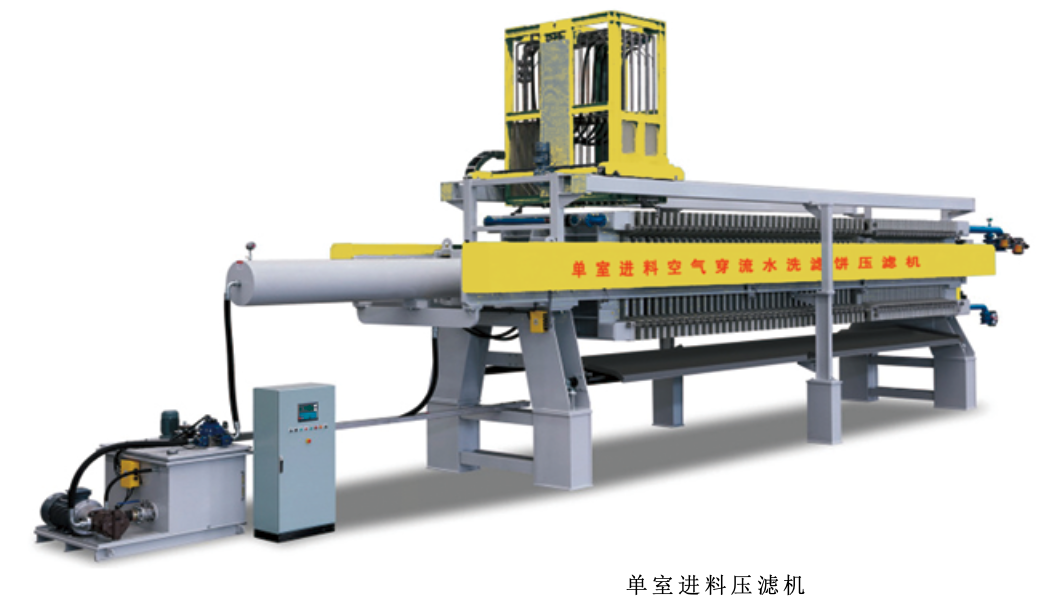

This specialized high-performance filter press integrates independent single-chamber feeding and air-through-water filter cake washing technologies. Unlike conventional filter presses with common feeding manifolds, it delivers uniform filtration pressure across all chambers and achieves exceptional washing efficiency with minimal liquid consumption. This design ensures consistent filter cake purity, maximum valuable material recovery, and significantly reduced wastewater discharge, making it indispensable for processing high-value, sensitive, or high-purity requirement materials.
Core Advantages
- Precision Single-Chamber Feeding: Each filter chamber is fed independently through dedicated valves, eliminating pressure imbalance, uneven cake thickness, and cross-contamination between chambers
- Superior Air-Through-Water Washing: Compressed air penetrates the entire filter cake after water washing, displacing residual mother liquor and impurities; improves washing efficiency by 30-50% while reducing water consumption by 40-60%
- Controllable Multi-Stage Washing: Supports multiple sequential washing cycles with adjustable pressure, time, and flow rate to meet different purity requirements
- Lower Cake Moisture: Final air blowing step further reduces filter cake moisture content by 5-10% compared to standard washing methods
- Fully Automated Operation: PLC control system manages the entire process from feeding, filtration, washing to cake discharge with minimal operator intervention
Standard Configuration
- Heavy-duty steel frame with anti-corrosion coating
- Specialized PP filter plates with independent feeding and washing channels
- Individual pneumatic feeding valves for each chamber
- Integrated compressed air washing system with pressure regulators
- Automatic plate shifting mechanism
- Touch screen PLC control panel with recipe storage function
- Customized filter cloth matched to specific material properties
Application Fields
Ideal for industries requiring high-purity filter cakes and efficient mother liquor recovery:
- Pharmaceutical manufacturing (API, antibiotics, intermediates)
- Fine chemical production (dyes, pigments, catalysts)
- Food and beverage processing (starch, sugar, edible oil, protein)
- Metallurgical industry (precious metal extraction, rare earth processing)
- Electronic materials and battery manufacturing
