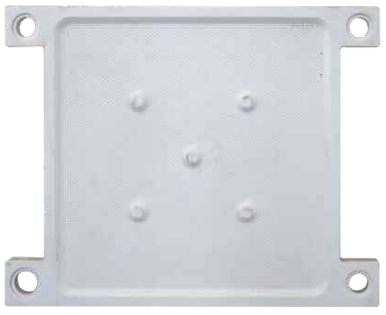

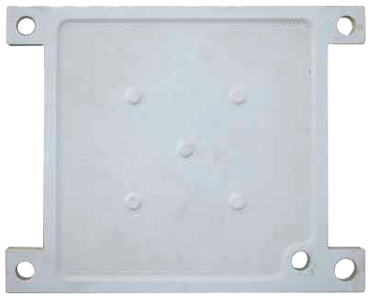

Our leaf filter plates are the core filtration components designed for vertical pressure leaf filters, delivering high-efficiency fine solid-liquid separation performance. Featuring a unique vertical leaf structure, these plates provide significantly larger filtration surface area within a compact footprint compared to traditional filter plates. The fully enclosed design ensures leak-free operation, making them ideal for processing high-value, sensitive, or volatile materials that require contamination-free filtration.
Key Advantages
- Exceptional Filtration Area: Compact vertical design delivers 2-3 times more filtration surface area than conventional flat filter plates, boosting processing capacity
- Precise Filtration Accuracy: Achieves consistent filtration precision from 0.5μm to 100μm, effectively removing even the finest suspended particles
- 100% Leak-Free Operation: Fully enclosed system prevents material leakage, evaporation, and external contamination, protecting both products and operators
- Easy Maintenance & Cleaning: Quick-disassembly design supports manual cleaning and CIP (Clean-in-Place) systems, minimizing downtime between batches
- Long Service Life: Manufactured from high-quality corrosion-resistant materials, withstanding repeated use and harsh chemical environments
- Versatile Compatibility: Compatible with all major brands of pressure leaf filters and various filtration media
Technical Specifications
- Materials: 304/316L stainless steel, food-grade polypropylene (PP), titanium alloy
- Filtration Precision: 0.5μm – 100μm
- Diameter Range: 300mm – 1500mm (custom sizes available)
- Maximum Working Pressure: 6 bar
- Operating Temperature: -20°C to 150°C (material-dependent)
- Surface Treatments: Polished, sandblasted, PTFE non-stick coating
- Compatible Media: Woven filter cloth, wire mesh, filter paper, sintered mesh
Application Fields
Perfect for industries requiring high-precision, contamination-free filtration:
- Food & Beverage: Beer, wine, fruit juice, edible oil, syrup, sugar refining
- Pharmaceutical: APIs, intermediates, biological products, oral liquids
- Fine Chemicals: Dyes, pigments, catalysts, solvents, cosmetics
- Water Treatment: Drinking water purification, industrial wastewater, RO pretreatment
- Petroleum & Chemical: Lubricating oil, diesel fuel, kerosene, chemical solvents
